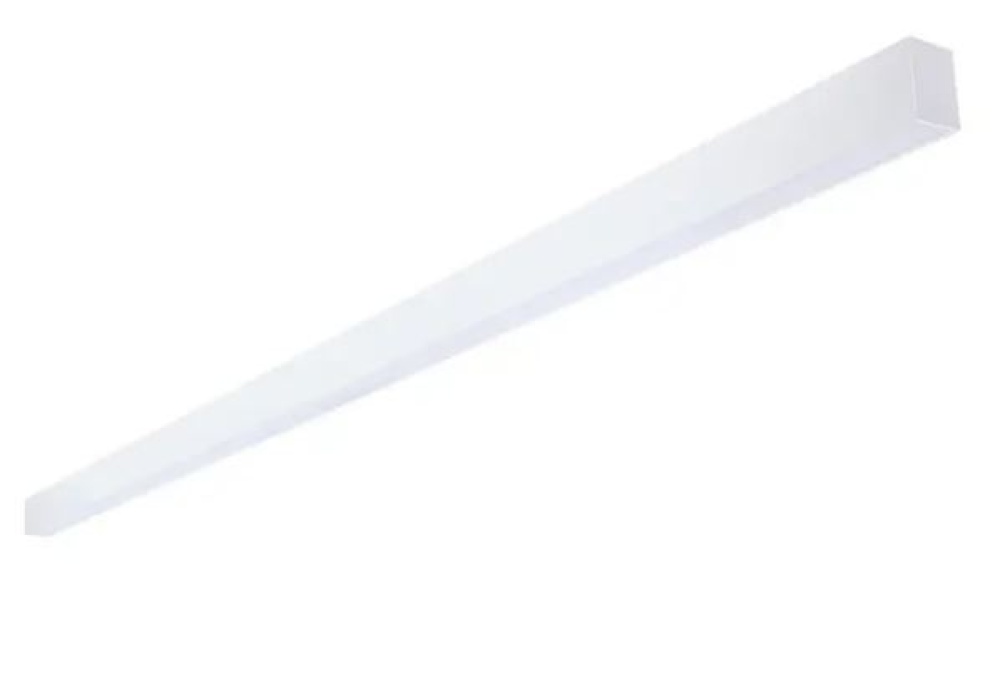

Momentum; 8 Foot LED Connectable Linear Strip; Up and Down Selectable; White Finish (AD4U3)

Momentum; 8 Foot LED Connectable Linear Strip; Up and Down Selectable; White Finish

Product Specification

Item #

AD4U3

Dimensions

Height: 3.40"

Width: 2.36"

Additional product details

Option

LED , Prop 65

Category

Linear Strip

Sub Category

Strip Fixture

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Soft White to Natural Light

Dimmable

Yes-Dimmable

Each Height

3.66

Each Length

94.29

Each Width

4.72

Length

92.76

Lumens

6600L/8800L/11000L

Tariff Code

9405.11.6010

Warranty

5-Years

Amps

0.500-0.173/0.667-0.231/0.833-0.288A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

Thailand

CRI

80+

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V

DLC Classification

Standard

DLC Primary Use

Direct Linear Ambient Luminaires

Each Cube

0.9426

Each Quantity

Efficacy

110.00 LPW

FCC Compliant

Yes

Finish Family

White

Fixture shape

Linear

Flicker Free

Yes

Has Camera

Has Emergency Battery

Indoor Outdoor

Indoor

IOT Enabled

JA8 Compliant

Lens Finish

White

Lens Material

Polycarbonate (PC)

Material

Aluminum

Mounting Procedure

Ceiling/Wall

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.93

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cETLus

Short Description

8' LED CONNECTABLE LINEAR

Specification Notes

Max Wattage when connected at 120V: 700W; Max Wattage when connected at 277V: 1400W; Max Wattage when connected at 347V: 1700W

Temperature (CCT)

3000K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Total Harmonic Distortion

10.3%

Wattage Selectable

Yes

Weight Lb.

12.35

Finish

Additional options that would change other selections
